20 October 2017

CIAT introduces DX air conditioners

CIAT has significantly expanded its product range to include DX air conditioners.

The CIAT Mambo range features full inverter control and reversible heat pump operation.

CIAT’s new Stella high-wall split system offers fully reversible operation under inverter control, Wi-Fi enabled control, and monitoring. The high-efficiency unit has seasonal energy efficiency ratio (SEER) values in excess of 7 and seasonal coefficient of performance (SCOP) values all above 4, putting it in the top rank of modern split systems.

Built in Wi-Fi connectivity allows the system to be controlled via a smart-phone, tablet or personal computer from anywhere. As an example, end users are able to turn on the unit in advance of travelling to home or work, to ensure comfortable conditions upon arrival.

The system has a self-cleaning function that initiates a drying cycle at the touch of a button, removing moist air from the surface of the heat exchanger inside the unit after operation, to counter mould growth.

It is equipped with a refrigerant leak detection system, which alerts users in the event of loss of refrigerant or compressor overload, so necessary remedial action can be taken.

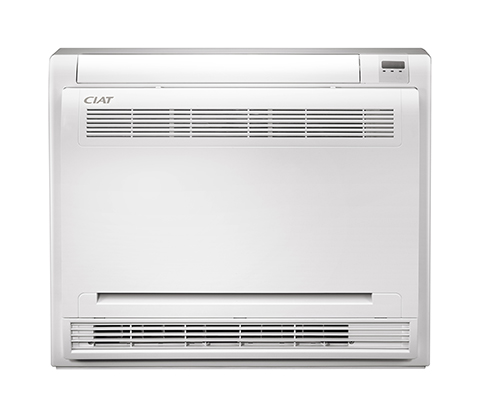

The Mambo small commercial range of floor-standing console air conditioners features full inverter control and reversible heat pump operation. The units are highly flexible, with two air outlets and four air inlets, and can be sited on a wall or under a ceiling.

Mambo consoles are equipped with a fresh-air intake port, that can be easily accessed for connection to a fresh air duct to further enhance indoor air quality.

CIAT’s new Salsa cassette heat pump air conditioner has a 360 degree air-flow design to ensure even temperature distribution across a room, without creating draughts for occupants. A ventilation motor can be added in a connected fresh air duct to further improve air quality.

Salsa is available in nominal cooling capacities from 2.64 to 15.10kW, and nominal heating from 3 to 18kW.

The new slim CIAT ducted range offers nominal cooling capacities from 3.52kW to 15.54kW and heating from 3.8kW to 17.6kW. Fully reversible and with in-built inverter control, the system offers a wide static pressure range, with a maximum static pressure of 160 pascals for high performance and energy efficiency.

To speed up installation, it is possible for the installer to automatically configure the external static pressure on ducted units.

Completing the range is a series of CIAT multi-split outdoor condensing units, with options capable of serving between two and five indoor units. They can be multiplexed in combination to offer high performance, compact cooling and heating for any size of project.
