Underfloor Heating
The ROTEX Underfloor heating system provides the perfect partner for the Daikin Altherma range of heat pumps. This system increases the efficiency (COP) of the heat pump and allows optimal individual room design, with easy and variable temperature control.
Features and Benefits
Works extremely well with low temp heat pumps to maxmise COP
Provides a room heat profile close to the ideal heat profile - warm feet
Avoids need for large and unsightly radiators
Adds marketing value to the property
Very popular with developers/end users
Virtually maintenance free
Great for tiled and modern floor finishes
Product Overview
Underfloor systems are made up of 4 main components:
1. Pipes
Monopex PEX-b:
Diameters 14-20mm. Aluminium version available too.
Very flexible and ideal for UFH applications.
System 70 (Duo double walled pipes)
Two layers: (1) inner PEX-B pipe and (2) outer PE pipe which is separated by an air gap
Ideal for mixed radiator / UFH systems and avoids need for complex mixers.
2. System pipe fixing plates
Rotex offers five different types of extruded polystyrene sheets
Each has individual thermal, point loading and acoustic performance
Pipe spacing and runs can be accommodated precisely and easily for the installer
3. Manifolds: the heart of the UFH system
Manufactured from high density polypropylene.
Manifolds are ordered for 2 – 14 UFH loops
Complete with pressure gauge, temperature gauges, isolating valves, air vents and flow meters.
4. Controls
Full range of room thermostats and individual room controls.

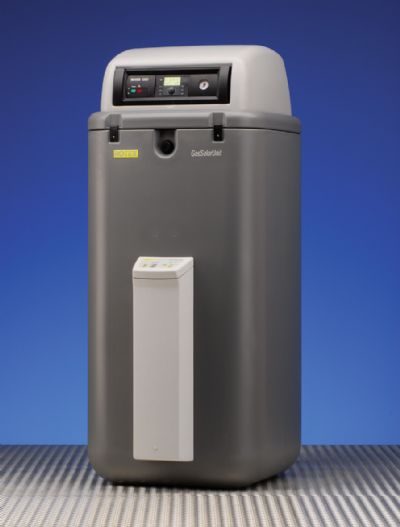

Gas Solar Unit
The ROTEX Gas Solar Unit is a solar supported thermal store with integrated condensing gas boiler back-up It includes a gas condensing boiler, with hot water and solar storage tank all in one for straightforward and cost effective installation. It offers a highly efficient heating and hot water solution.
Features & Benefits
Single unit including solar HW / CH and gas boiler back-up
Fully pre-assembled for hassle free installation
Instant mains-pressure DHW
Efficient and high performing system with low running costs
Low carbon emissions through modulating condensing technology
Drain back (glycol free) solar circuit
Built in weather compensation
Product Line up: 4 models
a) Solar DHW
GSU 320-e (4 – 20 kW)
GSU 535-e (8 – 35 kW)
b) Solar DHW/CH support
GSU 520 S-e (4 – 20 kW)
GSU 530 S-e (6.5 – 30 kW)
Product Overview
Compact and space-saving : footprint 0.36 – 0.61 m²
Two tank volumes 300 & 500 litres
Tank made of PE with 100mm PU foam insulation (ODP/GWP=0)
Simple flue installation with 80/125 concentric flue
Flue lengths up to 20m
If there is insufficient solar gain, the boiler kicks-in to provide back-up hot water and heating
Delivered for natural gas. Dedicated LPG appliances are available.
Integrated weather compensator controller (pre-wired for external temperature sensor)
Optional extras include CH filters, programmable room stats, mixer circuit modules, cascade of units, TMV
The Gas Solar Unit adds up to the Daikin heating range offering a unique and innovative high specification renewable heating product
