SRS Frigadon’s ‘plug in’ range encompasses high-quality, compact units which are manufactured in Sweden. The range is standardised, but includes the possibility for additional options in order to customise the units for special applications.
The units are a perfect choice for restaurant kitchens, bakeries, distribution centres and more. SRS Frigadon always pays special attention to the environment when choosing refrigerants and components.
The units are equipped as standard with R-290, an environmentally friendly refrigerant which meets all prospective environmental regulations. The units are available in the Mini, Midi, Maxi and Mega series options, with refrigerating capacities from 0.6kW up to 14.1kW. All units are tested prior to delivery at our test centre in order to ensure maximum energy efficiency and operational safety.
The units can be fitted with numerous additional options prior to shipping such as the addition of a water-cooled condenser, extreme ambient temperature kits, split units or with a special design for low noise emissions.

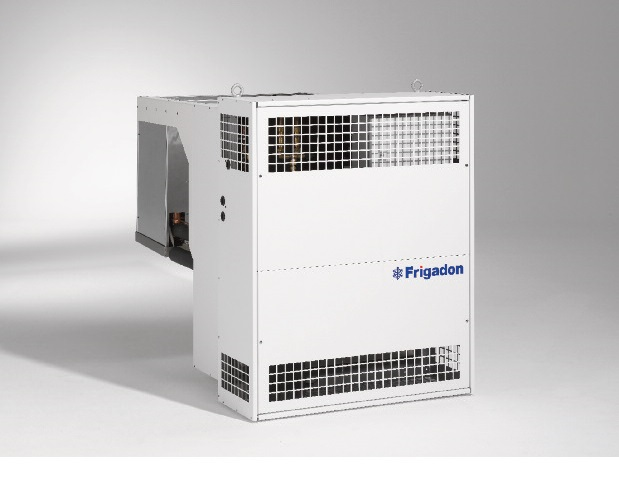

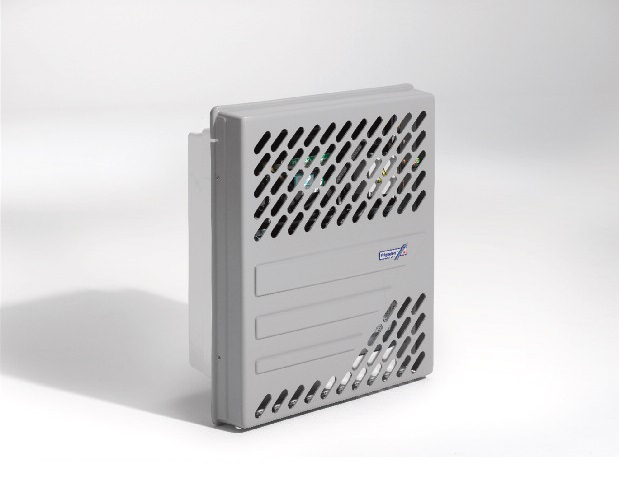

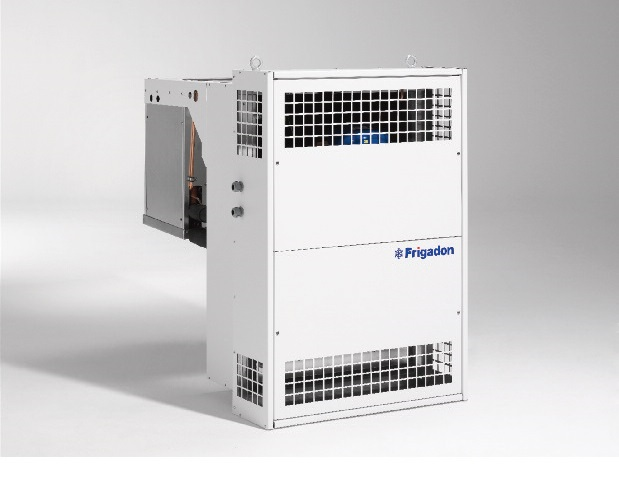

Mini, Midi, Maxi, Megacool
SRS Frigadon’s compact refrigeration units consist of a machine section and an evaporator section which are interconnected forming a single compact unit.
The units are completely operational upon delivery. It’s just a matter of mounting them and connecting them to a power source. Simply choose the correct model based on the size of the room and temperature requirements. Note that when using the R-290 as a refrigerant, the minimum room volume must be observed. See the relevant table concerning technical data.
Standard units are equipped with:
• Refrigerant, R-290
• Weatherproof and suitable for outdoor use in Nordic climates (ambient temperature –20°C to +32°C)
• Variable speed condenser fan (Minicool via pressure switch)
• Wall mounting
• Forced defrosting
• Automatic condensation evaporation
• Electronic thermostat
• External alarm device
• Thermostatically-regulated crankcase heater
• Complete with starting, operating and protection equipment
• Electrical cable for connection to an approved safety switch
